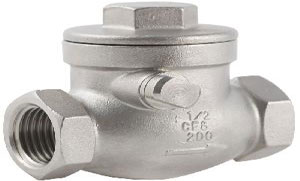

Check
Check valves are self-activating safety valves that permit gases and liquids to flow in only one direction, preventing process flow from reversing. They are classified as one-way directional valves.
Specifications
During normal operating conditions the check valve is in open position because of the working medium pressure. During emergency situation such as working medium lack or reverse flow the check valve closes automatically.

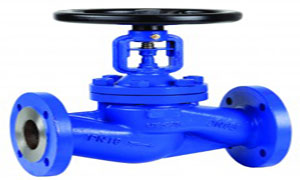

Globe
Valves offer a range of screw lift and screw down non return (SDNR) globe valves in various construction materials allowing them to be used in many applications including boilerhouse, steam, heating & air conditioning, water distribution & treatment, agricultural, compressed air, oils and gasses. We can also offer a range of manual, pneumatic, electric and hydraulic actuators to suit.
Valves offer a range of screw lift and screw down non return (SDNR) globe valves particularly suited for marine applications such as ballast systems, oil cargo pumping systems and shipside duties. They have type approvals by Lloyds, DNV, B.V, RINA, ABS, GL , and on request 3.1 and 3.2 certification is available. We can also offer a range of manual, pneumatic, electric and hydraulic actuators to suit.
Gate
Our Nickel & Copper Alloy Sheets are endowed with supreme strength and excellent resistance to corrosion and conductivity to heat. These Sheets find their usability, particularly in marine and oil refining industries. These are compliant Sheets that come along with the guarantee of quality. We have carved a niche in the market as the chief Manufacturer, Exporter, and Supplier of Plain Nickel & Copper Alloy Sheets from Mumbai
Specifications
1 MM to 200 MM thickness in 1000 MM to 3000 MM width x 2500 MM / 5000 MM/10000 MM / COIL.
Butterfly
The closure member of a butterfly valve is a circular disc or vane with its pivot axis at right angles to the direction of flow in the pipe.Like ball valves, a butterfly valve allows straight-through flow in the open position and shuts off flow when the ball is rotated 90 degrees. Because of their quarter turn actuation and low pressure drop butterfly valves are commonly found in flow shut-off applications. Unlike ball valves, butterfly valves are generally not used for flow throttling applications.The advantage of a butterfly valve over a ball valve is its relative compactness.
Plug
Needle
We hold proficiency in manufacturing wide range of Needle Valves in India. This Needle Valve is available with panel mounting option such as union bonnet, screwed bonnet, and integral bonnet. Moreover, we offer Needle Valves in various sizes and other specifications.Our precision needle valves are widely used in instrumentation and hydraulics applications. We do not compromise with the superior quality of our products. Clients’ gratification is our high precedency. The Needle Valves manufactured by us are made of highest quality control standards and expert workmanship.
Specifications

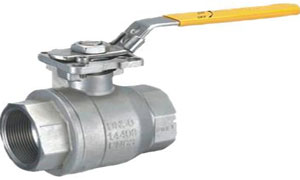

ball
A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball (called a "floating ball"[1]) to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.
The ball valve's ease of operation, repair, and versatility lend it to extensive industrial use, supporting pressures up to 1000 bar and temperatures up to 752°F (500°C), depending on design and materials used. Sizes typically range from 0.2 to 48 inches (0.5 cm to 121 cm). Valve bodies are made of metal, plastic, or metal with a ceramic; floating balls are often chrome plated for durability
